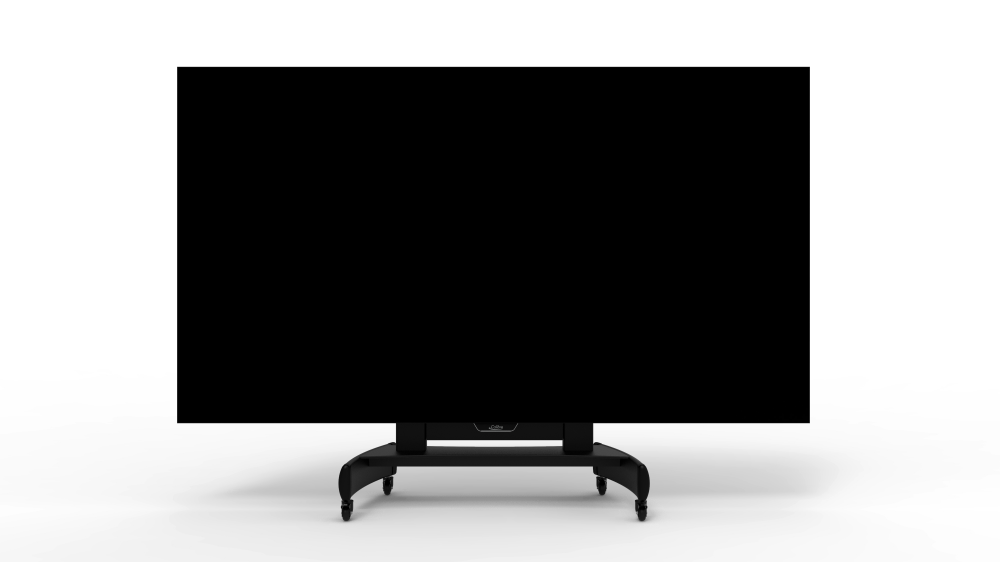

LEDFusion A120-18
LEDFusion A120 is a 1.875 fine pixel pitch display with a built-in smart android OS system and exclusive Calibre HQUltra 4K image processing engine. It has beautiful 1.9mm detachable frames and seamless docking for an ultra-wide immersive visual experience. You are free to customize your display with I/O slot card and open pluggable specification (OPS) for more versatile applications.
 |
Robust 4in1 LED 4in1LED is composed of 4 pixels, and the thrust strength is 4 times stronger than the traditional 1010 SMD structure.
Furthermore, the LED surface is treated with a matte surface that the light can be distributed evenly and also improve the contrast ratio. The unique optical design obtains a wider 170-degree viewing angle and good image sharpness so that each viewing angle is the optimal angle.
|
 |
Seamless Very Fine Pixel pitches ensure vivid images
|
|
|
High Refresh Rate >3000 Hz |
 |
True Color Visibility Superior color gamut to represent true color
|
|
|
High Contrast 5000:1 |
|
Smooth Gradient |
|
Adjustable Brightness Simple quick brightness adjustment by remote or App |
|
HQUltra 4K Scaling Up to 4K Image Scaling Quality with low latency video processing |
|
|
|
|
Premium Boardroom
|
Lobby
|
|
|
|
 |
|
Gallery
|
Luxury Residence
|
|
 |
 |
|
Retail Store
|
VIP Suite
|
| Product | LEDFusion A120-18 |
| Model | A120AF0-18 |
| Size | 120" |
| Resolution (W x H) | 1408 x792 |
| Display Area (W x H) | 2640 x 1485 mm |
| Dimensions (W x H x D) with Bezel |
2644 x 1489 x 35 mm |
| Weight |
110 kg / 242 lb |
| Panel Size (W x H) |
240 x 135 mm |
| Panel Resolution (W x H) | 128 x 72 |
| LED Type | 4in1 SMD |
| Pixel Pitch | 1.875 mm |
| Brightness (Max) |
1000 nit |
| Color Depth | 16 bits |
| Contrast Ratio | 5,000 : 1 |
| Viewing Angle | 170° |
| Display Refresh Rate |
3840 Hz |
| Color Temperature | 6500 K |
|
Operating Voltage & Power |
AC 200V-240V (max 2300W, 1000nit) |
| I / O |
HDMI-1.4b*1 & HDMI Loop*1, HDMI-1.4a*1, HDMI Monitor_output*1, 3G-SDI*1, USB*2, HDBaseT *1, Audio Line_out 3.5mm*1, RS232_in, RS232_out, RJ45 LAN Control |
| Operating Condition | Temp：-10℃ ~ +40℃；Humidity：10% ~ 85% |
Easy installation ( 2 persons in 1 hour)
|
|
|
|
|
1. Hang the right half module of Chassis on the bracket. |
|
|
2. Hang the left half module of Chassis on the bracket. |
|
|
3. Combine A120 Chassis modules into one and lock the screws. |
|
|
4. Place the LED Tiles and complete the installation. |
